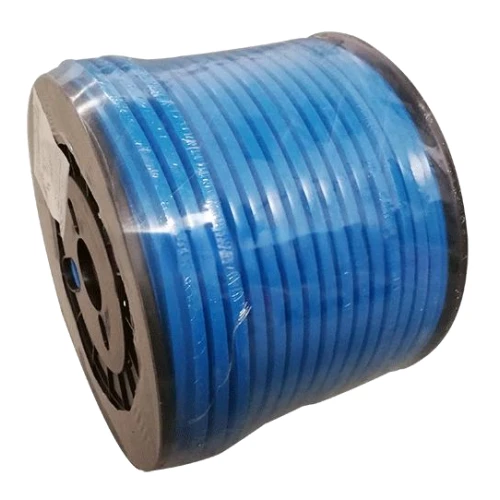

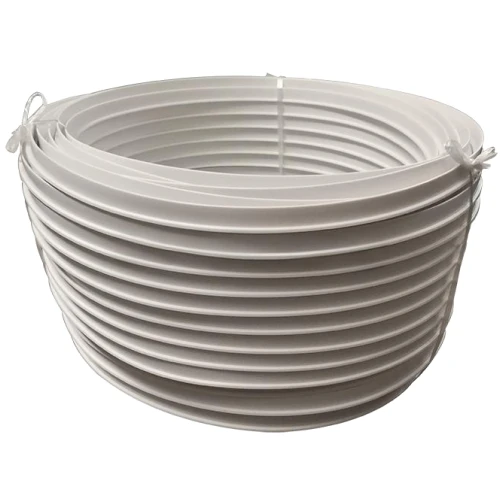

PVC/PU Guide Stripe

Features

• High-quality PVC/PU material for superior durability.
• Designed for precise guidance and alignment of materials.
• Helps maintain belt tracking on inclined or curved conveyors.
• Available in different colors and sizes to match specific conveyor requirements.
• Resistant to wear, tear, and abrasion, extending the life of both the stripe and conveyor.

Properties and Advantages

• Exceptional wear resistance, providing long-lasting performance in demanding environments.
• Flexible and customizable to suit a variety of conveyor setups.
• Temperature range from -10°C to +60°C, adaptable to various operational conditions.
• Oil, heat, ozone, and abrasion resistant for enhanced reliability.
• Helps reduce material spillage and misalignment.

Applications

• Used in conveyor systems in industries like food processing, logistics, packaging, and automotive.
• Ideal for guiding materials in factories, warehouses, and packaging lines.
• Suitable for both straight and inclined conveyor systems.

Type	Cross-section schematic	material (that sth is made of)	model number	Size bxh [mm]	Color	Operating temperature [°C]	Minimum turning diameter (surface) [mm]	Minimum turning diameter (bottom) [mm]
Guide Strip		PVC	D6	6×4	White/Green/Transparent	-10/+70	40	30
		PVC	D8	8×5	White/Green/Transparent	-10/+70	50	40
		PVC	D10	10×6	White/green/transparent/cyan	-10/+70	70	60
		PVC	D13	13×8	White/Green/Transparent	-10/+70	100	80
		PVC	D17	17×11	White/Green/Transparent	-10/+70	110	90
		PVC	D22	22×14	White/Green/Transparent	-10/+70	180	120
		PVC	D30	30×17	White/Green	-10/+70	230	180
		PU	D13	13×8	White/Green	-20/+80	100	70
		PU	D17	17×11	White/Green	-20/+80	110	90
		PU	D22	22×14	White/Green	-20/+80	180	150
